Description

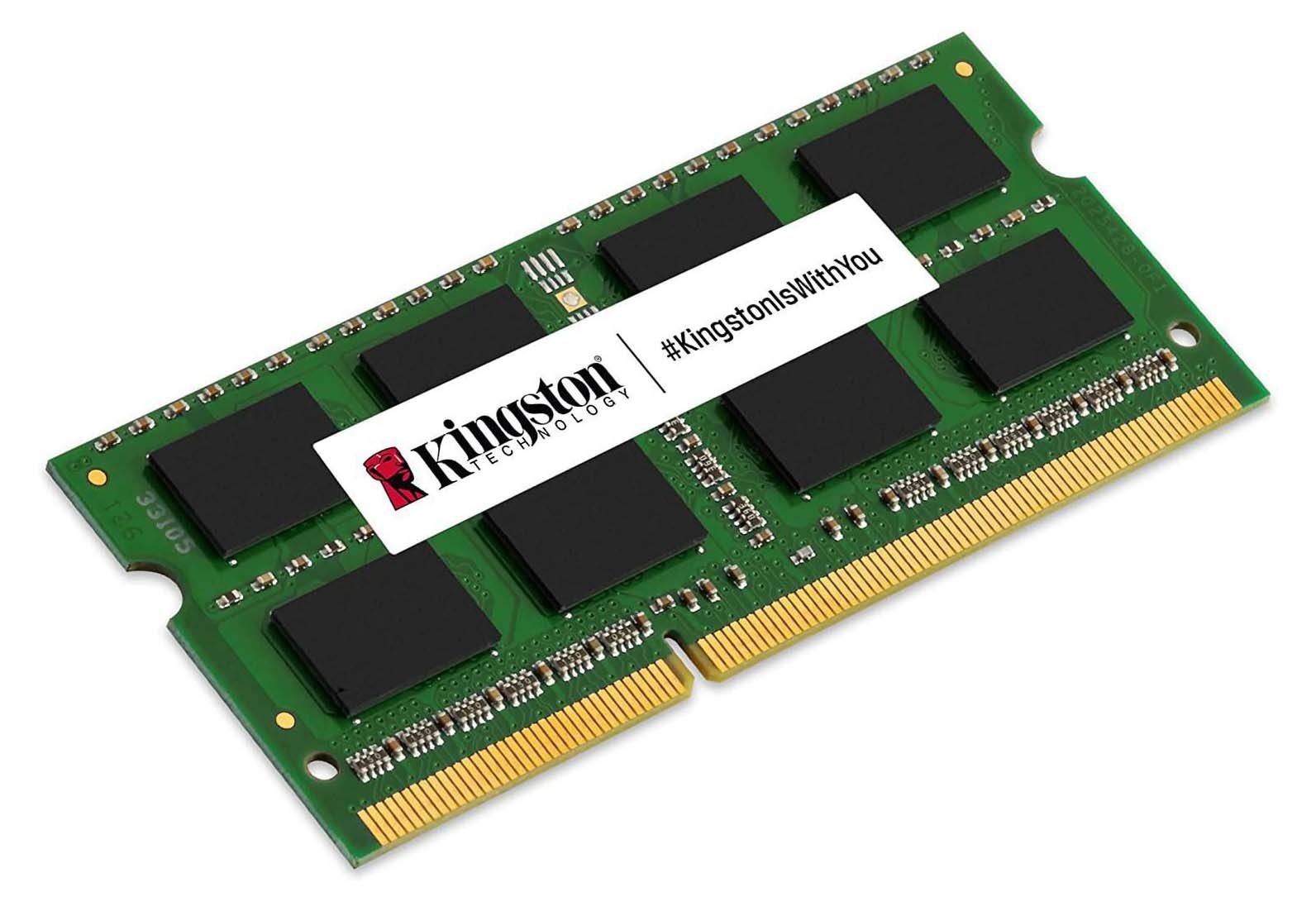

ValueRAM’s KVR56S46BD8-32 is a 4G x

64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8,

memory module, based on sixteen 2G x 8-bit FBGA components. The

SPD is programmed to JEDEC standard latency DDR5-5600 timing of

46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

The electrical and mechanical specifications are as follows:

Features

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free

Specification

CL(IDD): 46 cycles

Row Cycle Time (tRCmin): 48ns(min.)

Refresh to Active/Refresh/Command Time (tRFCmin): 295ns(min.)

Row Active Time (tRASmin): 32ns(min.)

UL Rating: 94 V – 0

Operating Temperature: – 0°C to +85°C

Storage Temperature: – -55°C to +100°C
