Description

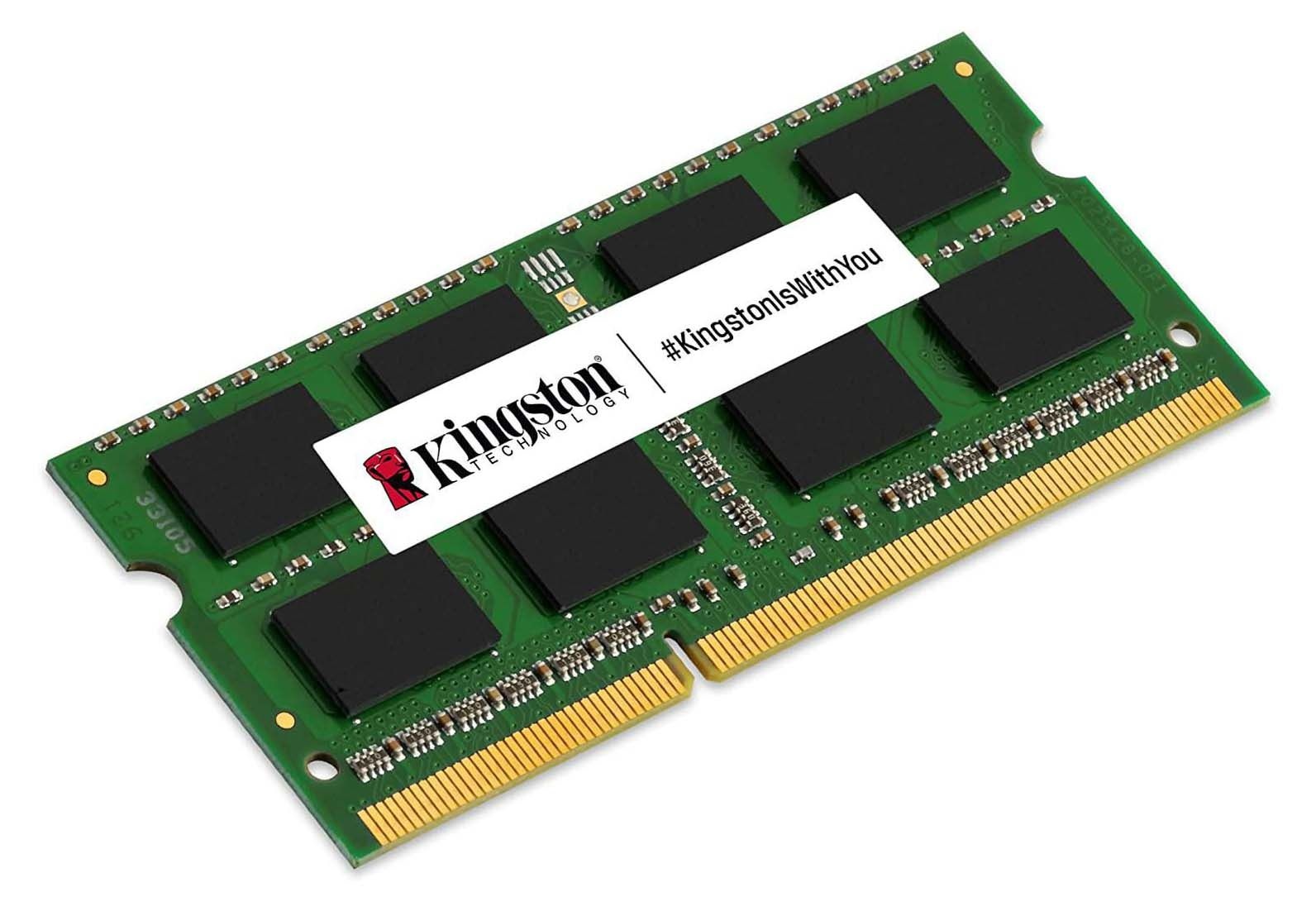

KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Specification:

CL(IDD): 46 cycles

Row Cycle Time (tRCmin): 48ns(min.)

Refresh to Active/Refres Command Time (tRFCmi): 295ns(min.)

Row Active Time (tRASmin): 32ns(min.)

UL Rating: 94 V – 0

Operating Temperature: 0°C to +85°C

Storage Temperature: -55°C to +100°C

Features:

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

PCB: Height 1.18” (30.00mm)

RoHS Compliant and Halogen-Free
