Description

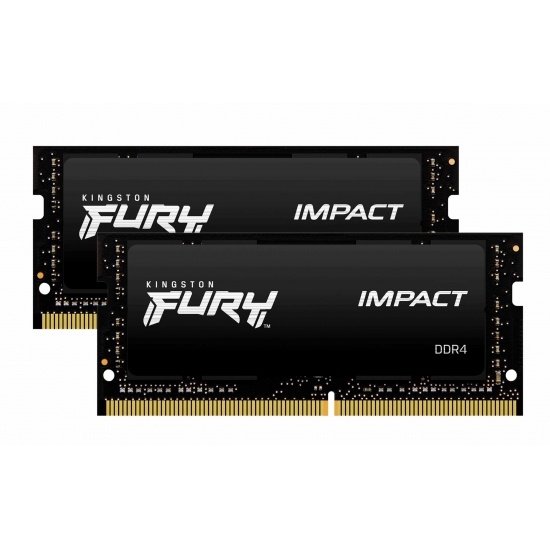

Kingston FURY KF432S20IBK2/16 is a kit of two 1G x 64-bit (8GB)

DDR4-3200 CL20 SDRAM (Synchronous DRAM) 1Rx8, memory

module, based on eight 1G x 8-bit FBGA components per module.

Each module kit supports Intel® Extreme Memory Profiles

(Intel® XMP) 2.0. Total kit capacity is 16GB. Each module has

been tested to run at DDR4-3200 at a low latency timing of 20-22-22

at 1.2V.

FACTORY TIMING PARAMETERS

• Default (Plug N Play): DDR4-3200 CL20-22-22 @1.2V

• XMP Profile #1: DDR4-3200 CL20-22-22 @1.2V

• XMP Profile #2: DDR4-2933 CL17-19-19 @1.2V

Specification:

CL(IDD): 20 cycles

Row Cycle Time (tRCmin): 45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin):350ns (min.)

Row Active Time (tRASmin):26.25ns(min.)

UL Rating: 94 V – 0

Operating Temperature: 0°C to +85°C

Storage Temperature: -55°C to + 100°C

Features:

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.18” (30.00mm)
