Description

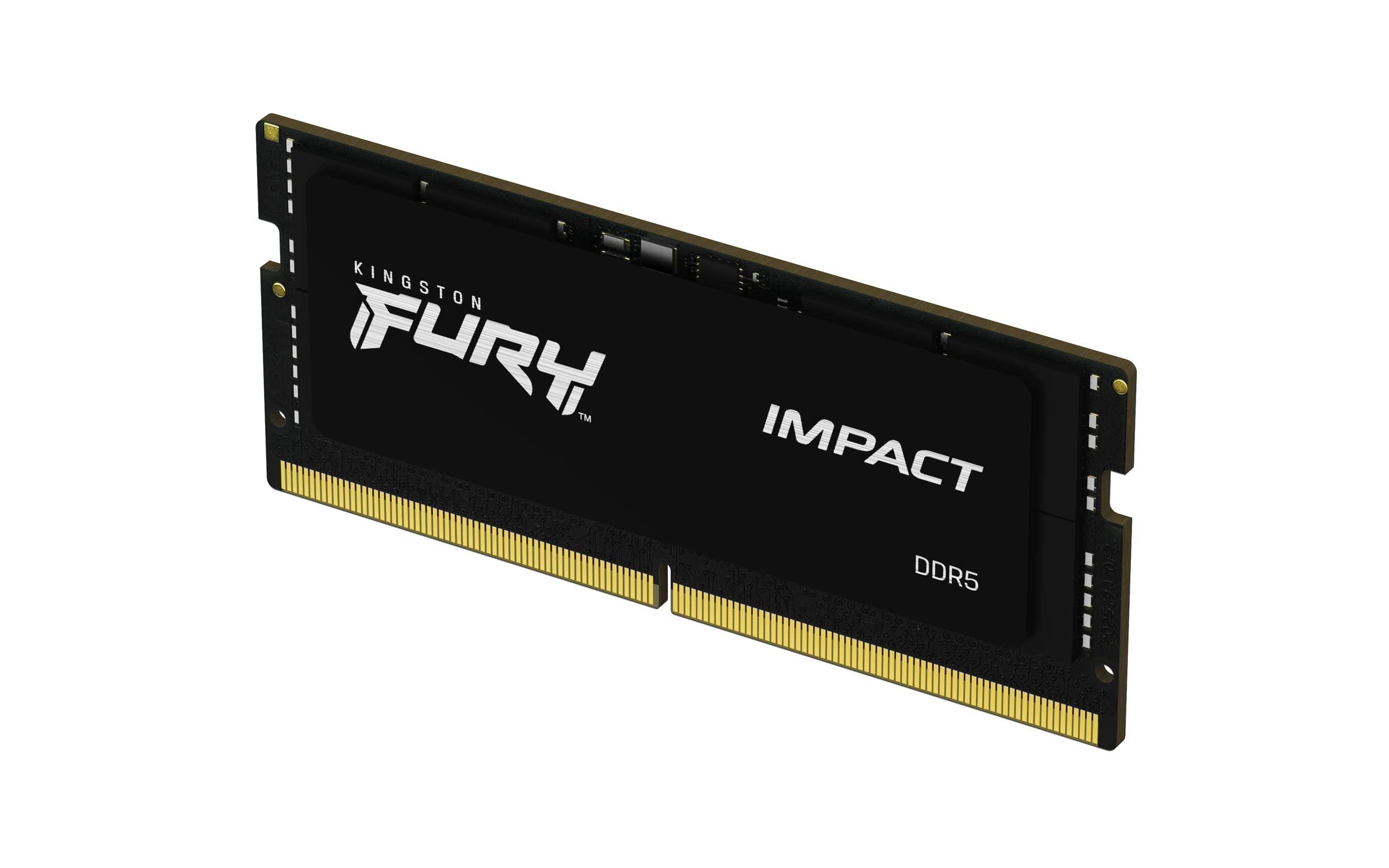

KF548S38IB-8 8GB 1G x 64-Bit DDR5-4800 CL38 262-Pin SODIMM

DESCRIPTION

Kingston FURY KF548S38IB-8 is a 1G x 64-bit (8GB) DDR5-4800

CL38 SDRAM (Synchronous DRAM) 1Rx16, memory module,

based on four 1G x 16-bit FBGA components per module. The

module supports Intel® Extreme Memory Profiles (Intel®

XMP) 3.0. Each module has been tested to run at DDR5-4800 at a

low latency timing of 38-38-38 at 1.1V. Additional timing parameters

are shown in the Plug-N-Play (PnP) Timing Parameters section

below. Each 262-pin DIMM uses gold contact fingers. The

JEDEC standard electrical and mechanical specifications are

as follows:

FACTORY TIMING PARAMETERS

• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V

SPECIFICATIONS

CL(IDD) – 38 cycles

Row Cycle Time (tRCmin) – 48ns(min.)

Refresh to Active/Refresh – 295ns(min.)

Command Time (tRFCmin)

Row Active Time (tRASmin) – 29.12ns(min.)

UL Rating – 94 V – 0

Operating Temperature – 0o C to +85o C

Storage Temperature – -55o C to +100o C

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.18” (30mm)
