Description

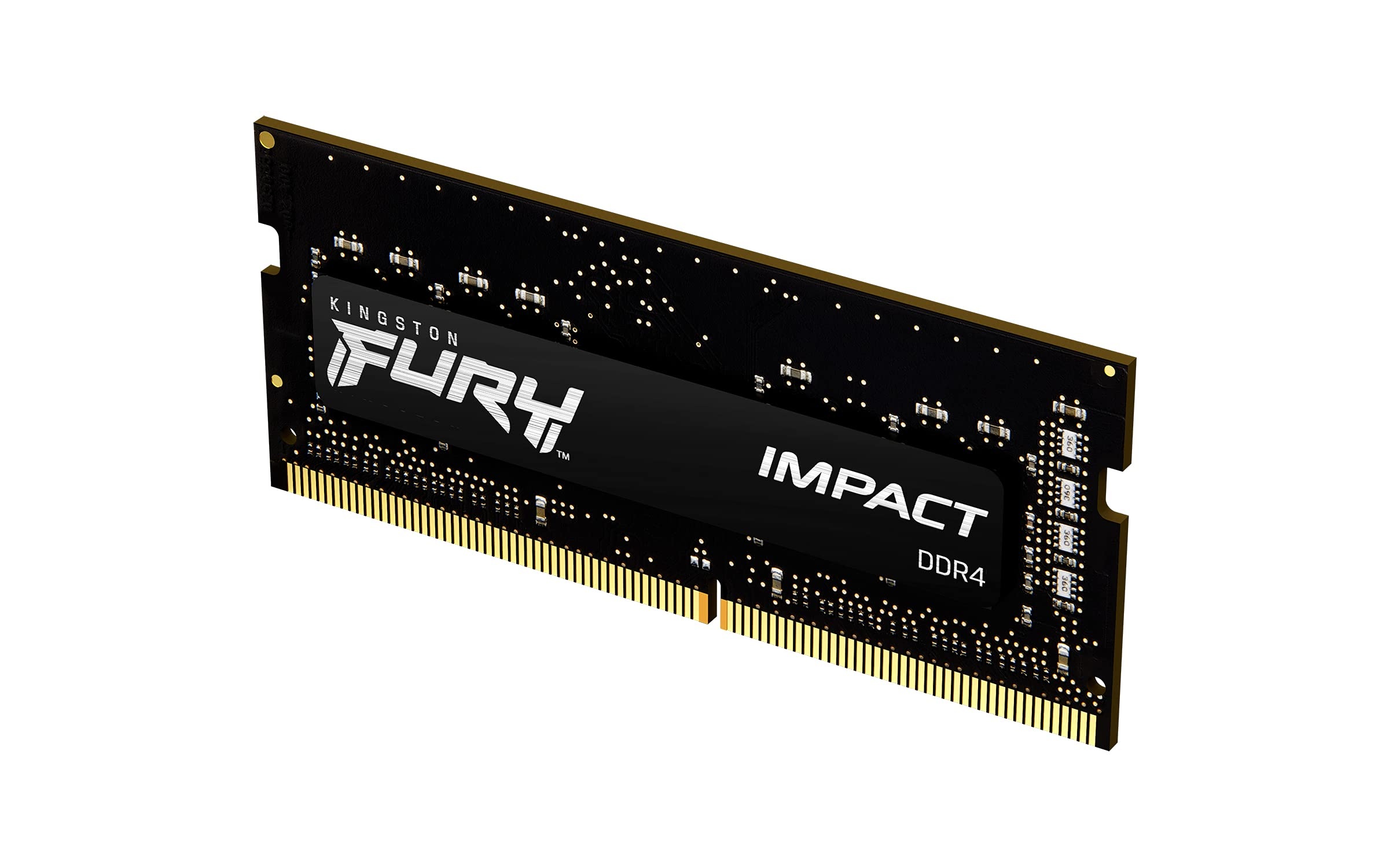

Kingston FURY KF432S20IB/8 is a 1G x 64-bit (8GB) DDR4-3200

CL20 SDRAM (Synchronous DRAM) 1Rx8, memory module, based

on eight 1G x 8-bit FBGA components per module. Each module

kit supports Intel® Extreme Memory Profiles (Intel® XMP)

2.0. Each module has been tested to run at DDR4-3200 at a low

latency timing of 20-22-22 at 1.2V. Additional timing parameters

are shown in the Plug-N-Play (PnP) Timing Parameters

section below.

FACTORY TIMING PARAMETERS

• Default (Plug N Play): DDR4-3200 CL20-22-22 @1.2V

• XMP Profile #1: DDR4-3200 CL20-22-22 @1.2V

• XMP Profile #2: DDR4-2933 CL17-19-19 @1.2V

Specification:

CL(IDD): 20 cycles

Row Cycle Time (tRCmin): 45.75ns(min.)

Refresh to Active/Refres Command Time (tRFCmi): 350ns(min.)

Row Active Time (tRASmin): 26.25ns(min.)

UL Rating: 94 V – 0

Operating Temperature: 0°C to +85°C

Storage Temperature: -55°C to +100°C

Features:

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.18” (30.00mm)
