Description

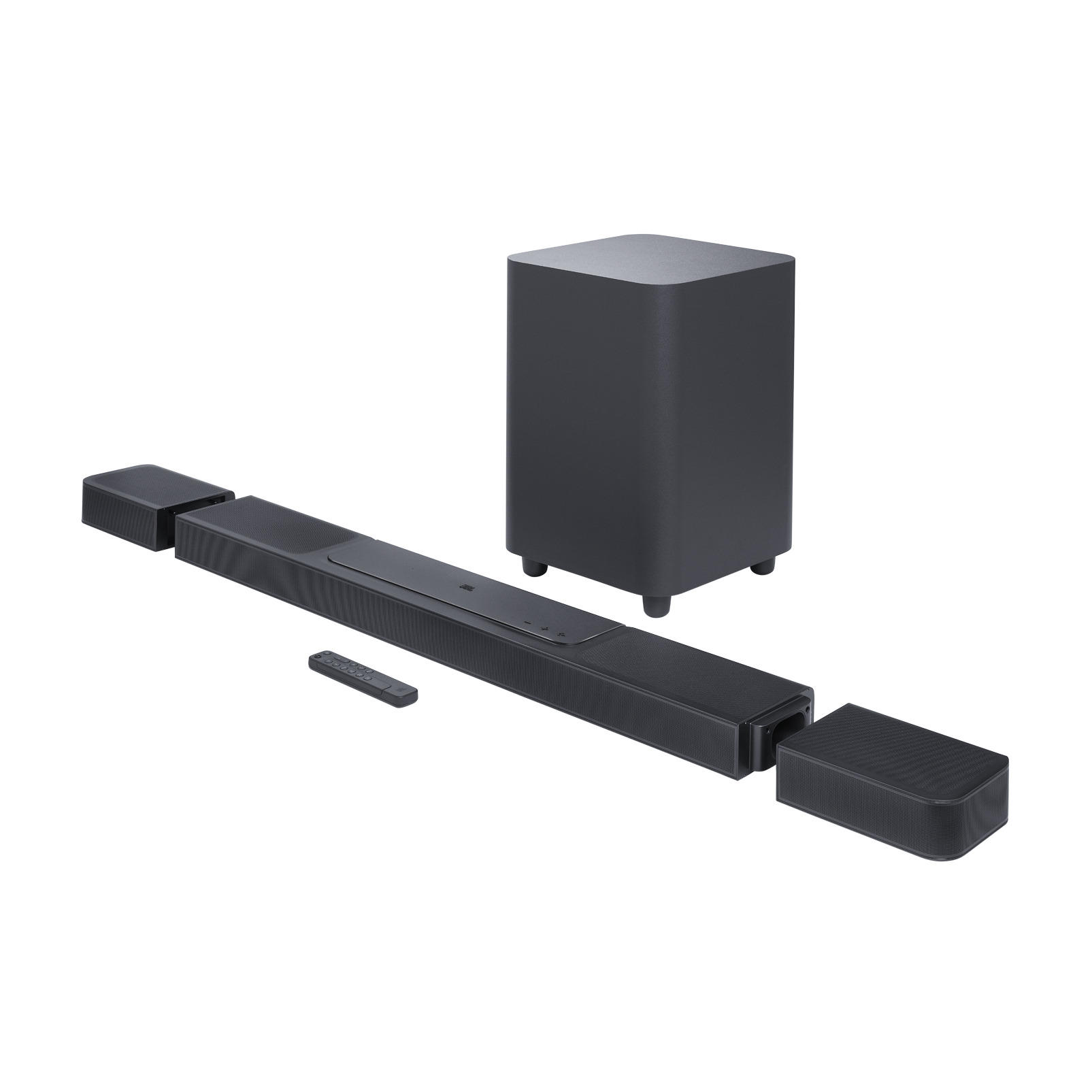

You’ve never heard anything like the JBL Bar 1300—in your living room or anywhere else. More than just a great soundbar, it’s a full sound system. It features MultiBeam™ and six up-firing drivers—four in the bar and two in the detachable battery-powered surround speakers—that deliver massive Dolby Atmos® and DTS:X 3D surround sound, centering you in your music, movies, and games. 1170W of total output power and thrilling bass from a 10” subwoofer is more than enough to make the room shake. Though, you’ll never miss a word with due to our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you want to enjoy your favorite tunes choose streaming via either AirPlay, Alexa Multiroom Music (MRM), or Chromecast built-in™ that give you over 300 music streaming options. But that’s not all. Your choices are as unlimited as you are because you can also pair the soundbar to your Bluetooth device. You can even take one of the detachable speakers (or both for powerful stereo sound) out to your kitchen or patio and enjoy listening to your favorite music or podcast there.
Sound system: 11.1.4 channel
Power supply: 100 – 240V AC, ~ 50/60Hz
Networked standby power: < 2.0W Operating temperature: 0°C - 45°C Total speaker power output (Max @THD 1%): 1170W Soundbar output power (Max @THD 1%): 650W Surround speaker output power (Max @THD 1%): 2x 110W Subwoofer output power (Max. @THD 1%): 300 W Soundbar transducer: 6x (46x90)mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers Surround speaker transducer: (46x90)mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle Passive Radiators Subwoofer transducer: 10” (260mm) Frequency response: 33Hz - 20kHz (-6dB) Audio inputs: 1 Optical, Bluetooth, USB (USB is for Service only.) Total soundbar dimensions (W x H x D): 1376 x 60 x 139 mm Main soundbar dimensions (W x H x D): 1000 x 60 x 139 mm Detachable surround speaker dimensions (each) (W x H x D): 202 x 60 x 139 mm Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm Soundbar weight: 4.3kg Detachable surround speaker weight (each): 1.25 kg Subwoofer weight: 10 kg Packaging dimensions (W x H x D): 381 x 1107 x 477 mm Packaging Weight: 21.45 kg USB port: Type A USB rating: 5V DC, 0.5A Supporting file format: MP3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz MP3 bitrate: 80 - 320 kpbs Bluetooth version: Main bar - 5.0, Detachable surround speaker - 5.2 Bluetooth profile: Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6 Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz Bluetooth transmitter power: <15dBm (EIRP) Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels) 2.4G Wi-Fi transmitter power: < 20dBm (EIRP) 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz 5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP) 2.4G wireless frequency range: 2406 - 2474MHz 2.4G wireless power: <10dBm (EIRP) Lithium battery 3.635V, 6600 mAh Detachable surround speaker playtime up to 12 Hours (may vary according to content type and volume level) HDMI video input: 3 HDMI video output (with Enhanced Audio Return Channel, eARC): 1 HDMI HDCP version: 2.3 HDR pass through: HDR10, Dolby Vision What's in The Box? 1x Main soundbar 2x Detachable wireless surround speakers 1x Wireless subwoofer Remote control with 2 x batteries Power cords (up to 8pcs depending on region SKUs) 1 x HDMI cable 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws 2 x Side caps Wall mount template
