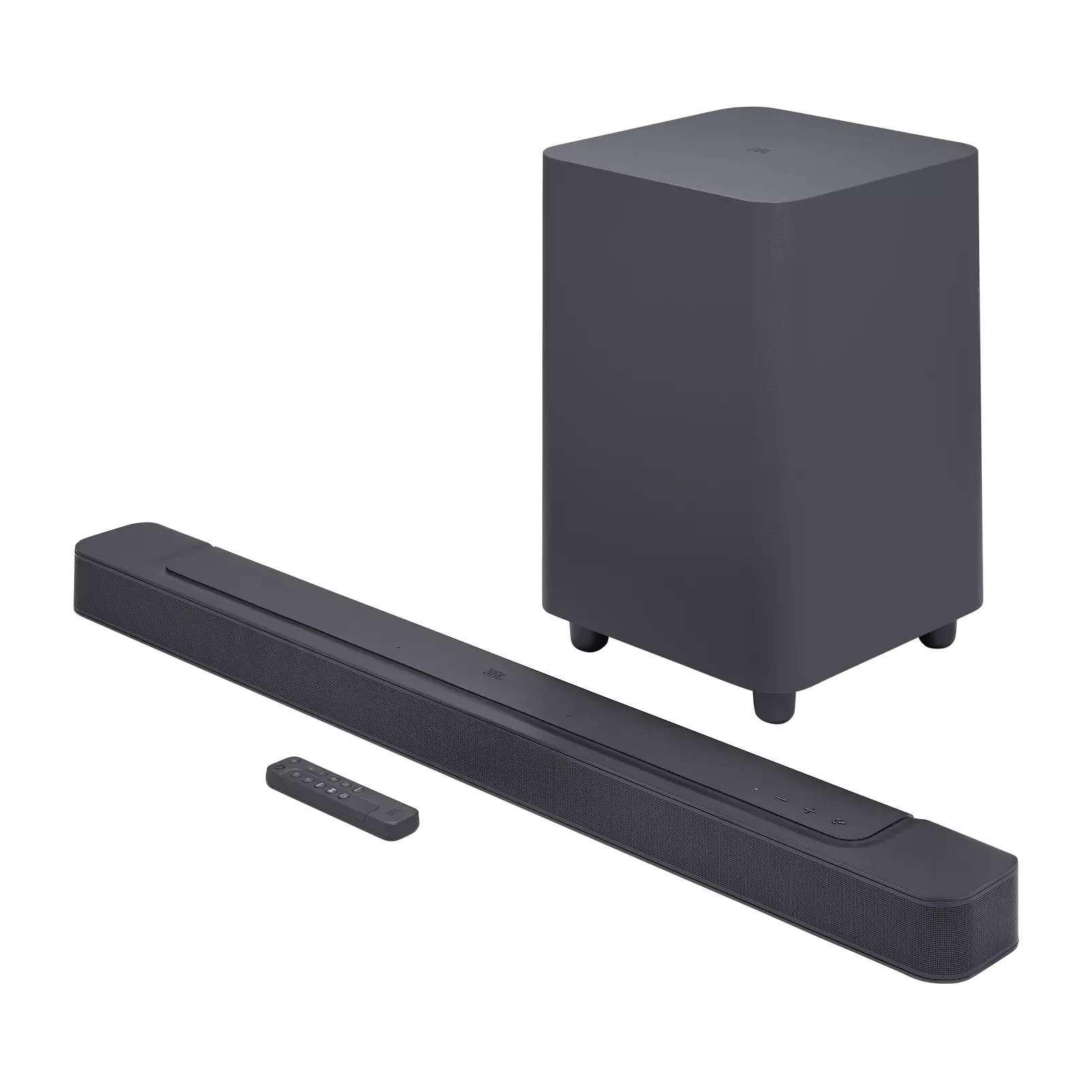

What’s on the menu tonight? Movies, music or gaming? The JBL Bar 500 brings your movies to life with MultiBeam™ and Dolby Atmos® 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. Feel the thrilling bass from the wireless 10″ subwoofer. And with AirPlay, Alexa Multi-Room Music (MRM) and Chromecast built-in™, you’ve got over 300 easy streaming options to choose from, whether you want to dance or you’re ready to relax. Whatever you’re in the mood for, the JBL Bar 500’s got you covered.

General Specifications

Power supply: 100 – 240V AC, ~ 50/60Hz

Networked standby power: < 2.0 W Operating temperature: 0°C - 45 °C Audio Specifications Total speaker power output (Max @THD 1%): 590W Soundbar output power (Max @THD 1%): 290W Subwoofer output power (Max. @THD 1%): 300 W Soundbar transducer: 4x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters Subwoofer transducer: 10” (260mm) Frequency response: 35Hz - 20kHz (-6dB) Audio inputs: 1 Optical, Bluetooth, USB (USB is for Service only.) Dimensions Soundbar dimensions (W x H x D): 1017 x 56 x 103.5 mm Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm Soundbar weight: 2.8kg Subwoofer weight: 10 kg Packaging dimensions (W x H x D): 1105 x 370 x 475 mm Packaging Weight: 16.2 kg Control and Connection Specifications USB port: Type A USB rating: 5V DC, 0.5A Supporting file format: MP3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz MP3 bitrate: 80 - 320 kpbs Bluetooth version: 5.0 Bluetooth profile: A2DP 1.2, AVRCP 1.5 Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz Bluetooth transmitter power: <15 dBm (EIRP) Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) 2.4G Wi-Fi transmitter power: < 20 dBm (EIRP) 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz 5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP) 2.4G wireless transmitter frequency range: 2406 - 2474MH 2.4G wireless transmitter power: ＜10dBm (EIRP） Video Specifications HDMI video input: 1 HDMI video output (with Enhanced Audio Return Channel, eARC): 1 HDMI HDCP version: 2.3 HDR pass through: HDR10, Dolby Vision What's in The Box? 1 x Main Soundbar 1 x Wireless subwoofer Remote control with 2 x batteries Power cords 1 x HDMI cable 2 x L-shape wall-mount bracket with screws Quick start guide Wall mount template
