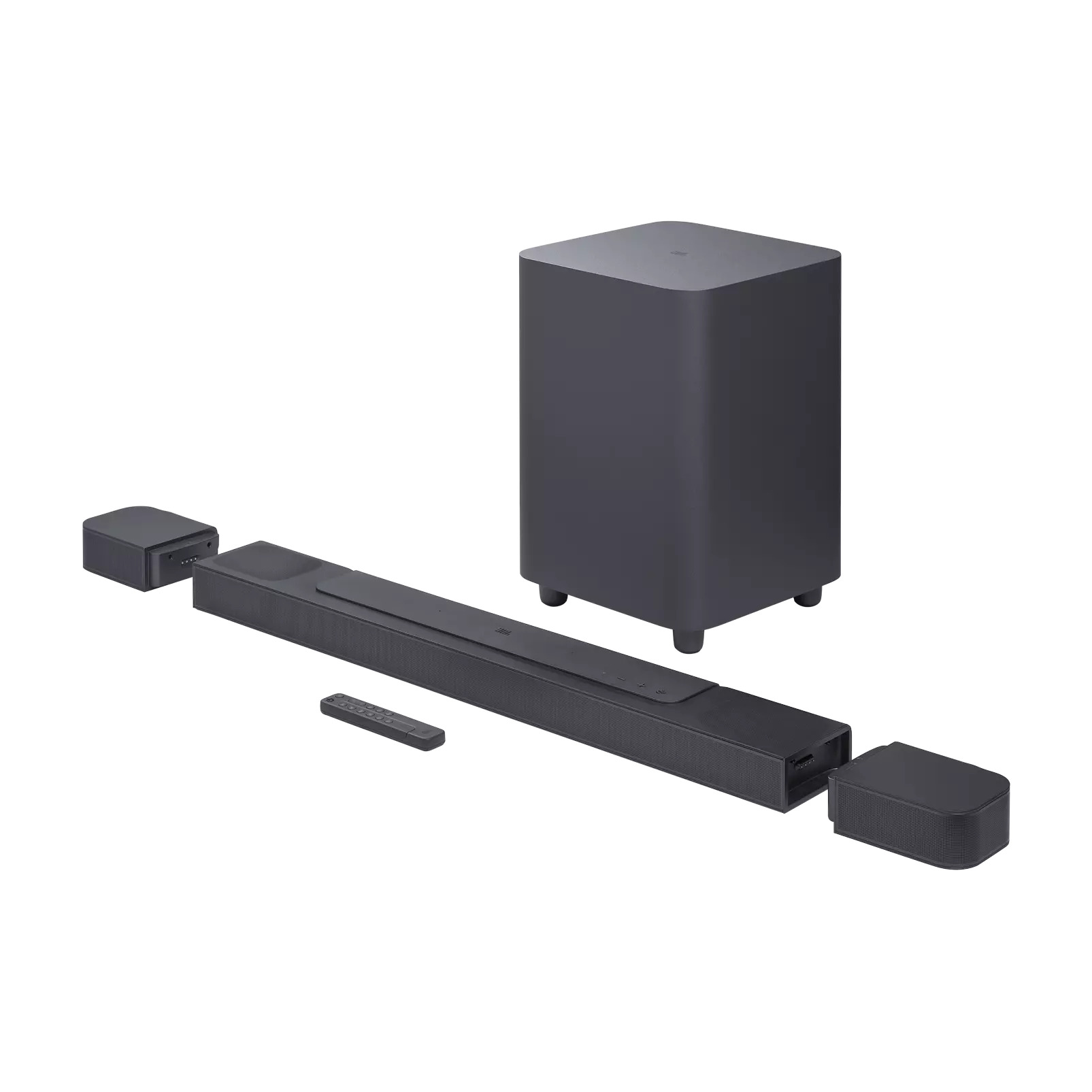

Make movie night soar and let your music move you to new heights with 720W of total output power and thrilling bass from the 10″ subwoofer. The JBL Bar 800 with Dolby Atmos® includes two up-firing drivers and detachable battery-powered surround speakers to create an immersive 3D cinema experience without having to draw extra cables. You’ll never miss a word with our PureVoice technology, which makes sure dialogues are clear even when other sounds are at their loudest. And when you’re ready to cut loose, stream your favorite music from AirPlay, Alexa MRM, or Chromecast built-in™. Your get-togethers will never be the same.

General Specifications

Power supply: 100 – 240V AC, ~ 50/60Hz

Networked standby power: < 2.0W Operating temperature: 0°C - 45°C Audio Specifications Total speaker power output (Max @THD 1%): 720W Soundbar output power (Max @THD 1%): 340W Surround speaker output power (Max @THD 1%): 2x 40W Subwoofer output power (Max. @THD 1%): 300 W Soundbar transducer: 3x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers Surround speaker transducer: 1x (46x90)mm racetrack driver Subwoofer transducer: 10” (260mm) Frequency response: 35Hz - 20kHz (-6dB) Audio inputs: 1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB is for Service only.) Dimensions Total soundbar dimensions (W x H x D): 1174 x 56 x 120 mm Main soundbar dimensions (W x H x D): 884 x 56 x 120 mm Detachable surround speaker dimensions (each) (W x H x D): 145 x 56 x 120 mm Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm Soundbar weight: 3.4 kg Detachable surround speaker weight (each): 1.3 kg Subwoofer weight: 10 kg Packaging dimensions (W x H x D): 1000 x 375 x 475 mm Packaging Weight: 18.9 kg Control and Connection Specifications USB port: Type A USB rating: 5V DC, 0.5A Supporting file format: MP3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz MP3 bitrate: 80 - 320 kpbs Bluetooth version: 5.0 Bluetooth profile: A2DP 1.2, AVRCP 1.5 Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz Bluetooth transmitter power: <15dBm (EIRP) Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels) 2.4G Wi-Fi transmitter power: < 20dBm (EIRP) 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz 5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP) 2.4G wireless transmitter frequency range: 2406 - 2474MH 2.4G wireless transmitter power: ＜10dBm (EIRP） Battery Lithium battery: 3.635V, 3283mAh Video Specifications HDMI video input: 1 HDMI video output (with Enhanced Audio Return Channel, eARC): 1 HDMI HDCP version: 2.3 HDR pass through: HDR10, Dolby Vision What's in The Box? 1x Main soundbar 2x Detachable wireless surround speakers 1x Wireless subwoofer Remote control with 2 x batteries Power cords 1 x HDMI cable 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws 4 x Side caps Quick start guide Wall mount template
