Description

Party without limits

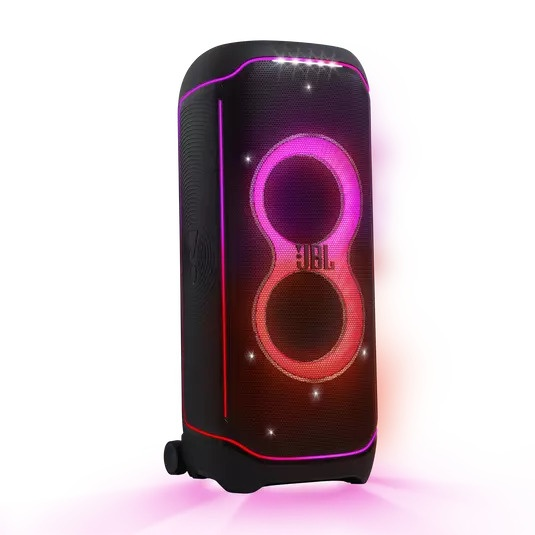

The JBL PartyBox Ultimate fills as much space as you’ve got with superior Original JBL Pro Sound, boosted with an immersive Dolby Atmos experience over Wi-Fi*. Because everyone at a party loves powerful sound whether they’re showing out on the dance floor or vibing on the sidelines. Along with sound that’s crystal clear even at its loudest, your guests will thrill to a huge, breathtaking lightshow of captivating starry lights, cool light trails, and strobe effects, all moving in sync with your beat. Make it simple by streaming your favorite party playlist. Even take the stage, with inputs for two mics and a guitar. No matter how things unfold, you can create your own party flow using the fun interactive effects of the JBL PartyPad™. Planning something even bigger? Turn your party into a full-on event. Wireless pairing and multi-speaker connection are easy to set up and customize using the JBL One app. The splash-proof JBL PartyBox Ultimate is self-tuning, it’s going to sound its best no matter where you set it up. Think of the most supreme party ever—and then go bigger. That’s what the JBL PartyBox Ultimate was made for.

General Specifications

Output power: 1100W RMS (IEC60268)

Power input: 100 – 240 VAC ~50/60Hz

Frequency response: 30Hz-20KHz (-6dB)

Signal-to-noise ratio: >80dB

Cable type: right-angle AC power cable (type varies by regions)

Cable length: 2.0 m / 6.6 ft

Supported formats: .mp3, .wma, .wav

Transducers: 2 x 242 mm (9″) subwoofer, 2x 120 mm (4.5″) mid-range, 2 x 74 mm(2.75″) tweeter

Audio Specifications

Dynamic frequency response range (Hz): 2400 MHz – 2483.5 MHz

Dimensions

Dimensions (W x H x D): 455.0 mm x 1049.0 mm x 440.0 mm

Net Weight: 39.5 kg

Control and Connection Specifications

USB charge out: 5V / 2.1A (max)

USB format: FAT16, FAT32

5G Wi-Fi transmitter frequency range: 5.15-5.35GHz, 5.470-5.725GHz, 5.725-5.825GHz

5G Wi-Fi transmitter power: <23dBm 5G Wi-Fi modulation: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5G Wi-Fi network compatibility: 802.11a/n/ac/ax 2.4G Wi-Fi transmitter frequency range: 2.4GHz-2.4835GHz 2.4G Wi-Fi transmitter power: <20dBm 2.4G Wi-Fi modulation: DSSS (DBPSK, DQPSK, CCK), OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 2.4G Wi-Fi network compatibility: 802.11 b/g/n/ax Bluetooth® version: 5,3 Bluetooth® profile: A2DP V1.3, AVRCP V1.5 Bluetooth® transmitter frequency range: 2400 MHz – 2483.5 MHz Bluetooth® transmitter power: ≤15dBm (EIRP) Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK Aux-In: 250 mVrms (3.5 mm connector) Mic-In: 20 mVrms Guitar-In: 100 mVrms Bluetooth/USB Input: -12 dBFS Features Built-in Wi-Fi: Yes IP Code: IPx4 JBL One App: Yes Lightshow: Yes 3.5 mm audio cable Input: Yes Wireless: No Splashproof: Yes Bluetooth: Yes
