Description

Product Details

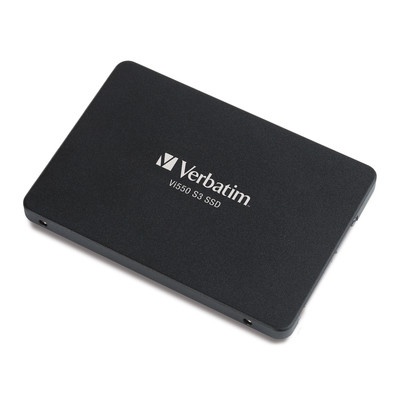

Internal 2.5” SATA III 7mm Solid State Drive

High reliability with superior flash controller

Client SSD for desktop and notebook upgrades

Read speeds of up to 560 MB/s

Boost your PC’s performance and launch applications faster

Low power consumption for extended battery life

Professional installation recommended

System Requirements

2.5” SATA III Interface

Specifications

Form factor: 2.5” 7mm

Host Interface: SATA Revision 3.2. SATA 1.5 Gbps, 3 Gbps and 6 Gbps interface

Read IOPS: 128GB: 61,279 / 256GB: 64,784 / 512GB: 75,413

Write IOPS: 128GB: 81,727 / 256GB: 85,901 / 512GB: 86,756

System Reliability (MTBF): 2 million hours

TBW Rating: 128GB: 75TB / 256GB: 150TB / 512GB: 360TB

Operating Temperature: 0°C to 70°C

Non-Operating Temperature: -40°C to 85°C

Humidity: RH 90% under 40°C (operational)

Shock: 1500G, duration 0.5ms Half Sine Pulse

Vibration: 20Hz~80Hz/1.52mm frequency/diplacement. 80Hz~2000Hz/20G frequency/acceleration, X,Y,Z axis 60 minutes orientation

Dimensions: 7mm x 69.9mm x 100.5mm

Weight: 45g

Data Transfer:

Read Speeds: 128GB: up to 560MB/s* / 256GB: up to 560MB/s* / 512GB: up to 560MB/s*

Write Speeds: 128GB: up to 430MB/s* / 256GB: up to 460MB/s* / 512GB: up to 535MB/s*

Power Consumption:

Active Read: 128GB: 1250mW / 256GB: 1310mW / 512GB: 1430mW

Write Power Consumption: 128GB: 1280mW / 256GB: 1330mW / 512GB: 1670mW

Idle Power Comption: 128GB: 306mW / 256GB: 315mW / 512GB: 320mW

Intended for use in client PC applications and are not suitable for server environments.
