Description

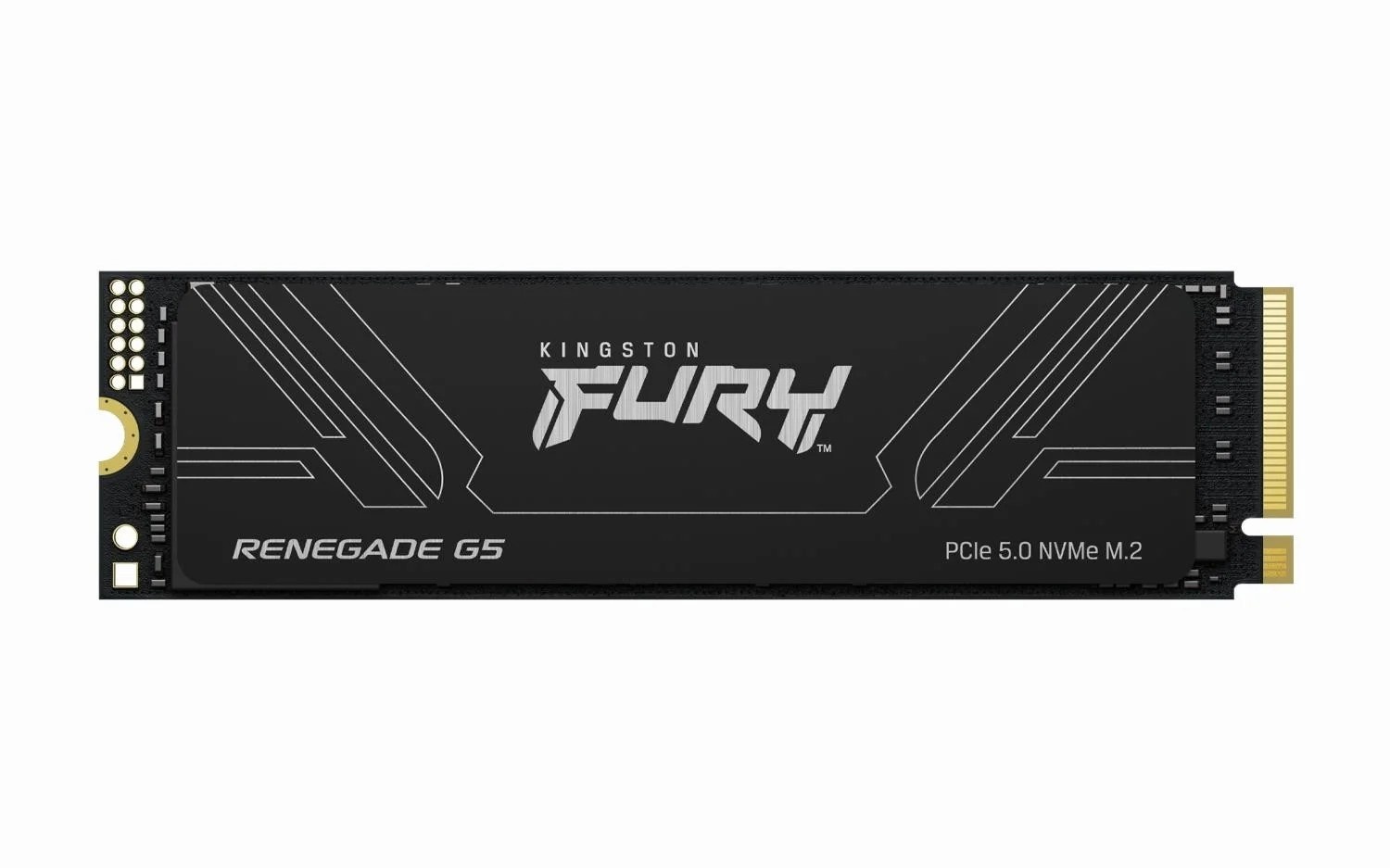

Kingston FURY™ Renegade G5 PCIe 5.0 NVMe M.2 SSD is for high-power users, hardware enthusiasts and gamers ready for the latest Gen 5×4 performance. With raging speeds of up to 14,800MB/s read and 14,000MB/s write, its extreme performance boosts game and app load times and improves reaction time, while its exceptional design keeps it cool.

Specification

Form factor: M.2 2280

Interface: PCIe 5.0 x4 NVMe

Capacity: 2048GB

Controller: SM2508

NAND: 3D TLC

DRAM cache: Yes

DirectStorage: supportedYes

Sequential read/write:

1024GB – up to 14,200/11,000MB/s

2048GB – up to 14,700/14,000MB/s

4096GB – up to 14,800/14,000MB/s

Random 4K read/write:

1024GB – up to 2,200,000/2,150,000 IOPS

2048GB – 4096GB – up to 2,200,000/2,200,000 IOPS

Endurance (total bytes written):

1024GB – 1.0PB

2048GB – 2.0PB

4096GB – 4.0PB

Power consumption:

1024GB – 0.27W avg / 6.6W @ 14.2G / 6.6W (MAX)

2048GB – 0.27W avg / 7.0W @ 14.7G / 7.0W (MAX)

4096GB – 0.27W avg / 7.1W @ 14.8G / 9.5W (MAX)

Storage temperature: -40°C~85°C

Operating temperature: 0°C~70°C

Dimensions: 80mm x 22mm x 2.3mm

Weight:

1024GB – 7.3g

2048GB-4096GB – 7.7g

Vibration operating: 2.17G peak (7-800Hz)

Vibration non-operating: 20G peak (20-1000Hz)

MTBF: 2,000,000 hours

Warranty/Support: Limited 5-year warranty with free technical support
