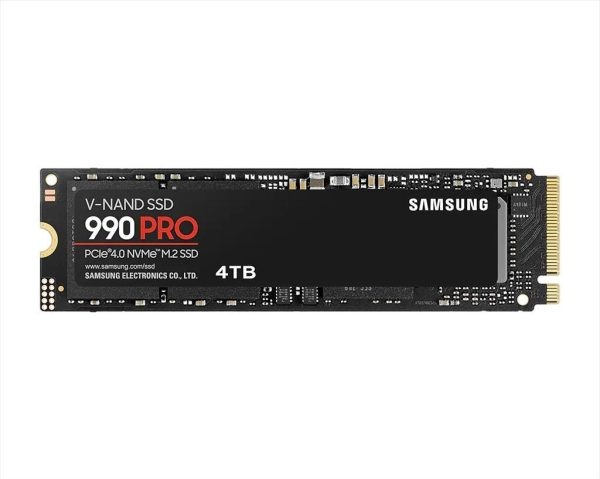

Description

General Feature

Application – Client PCs, Game Consoles

Capacity – 4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor – M.2 (2280)

Interface – PCIe Gen 4.0 x4, NVMe 2.0

Dimension (Pack: WxHxD) – 80 x 22 x 2.3 mm

Weight – Max 9.0g Weight

Storage Memory – Samsung V-NAND 3-bit MLC

Controller – Samsung in-house Controller

Cache Memory – Samsung 1GB Low Power DDR4 SDRAM

Special Feature

TRIM Support – Supported

S.M.A.R.T Support – Supported

GC (Garbage Collection) – Auto Garbage Collection Algorithm

Encryption Support – AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support – Not supported

Device Sleep Mode Support – Yes

Performance

Sequential Read

Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

Random Read (4KB, QD32)

Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD32)

Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

Random Read (4KB, QD1)

Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD1)

Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level)

*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 – 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)
