Description

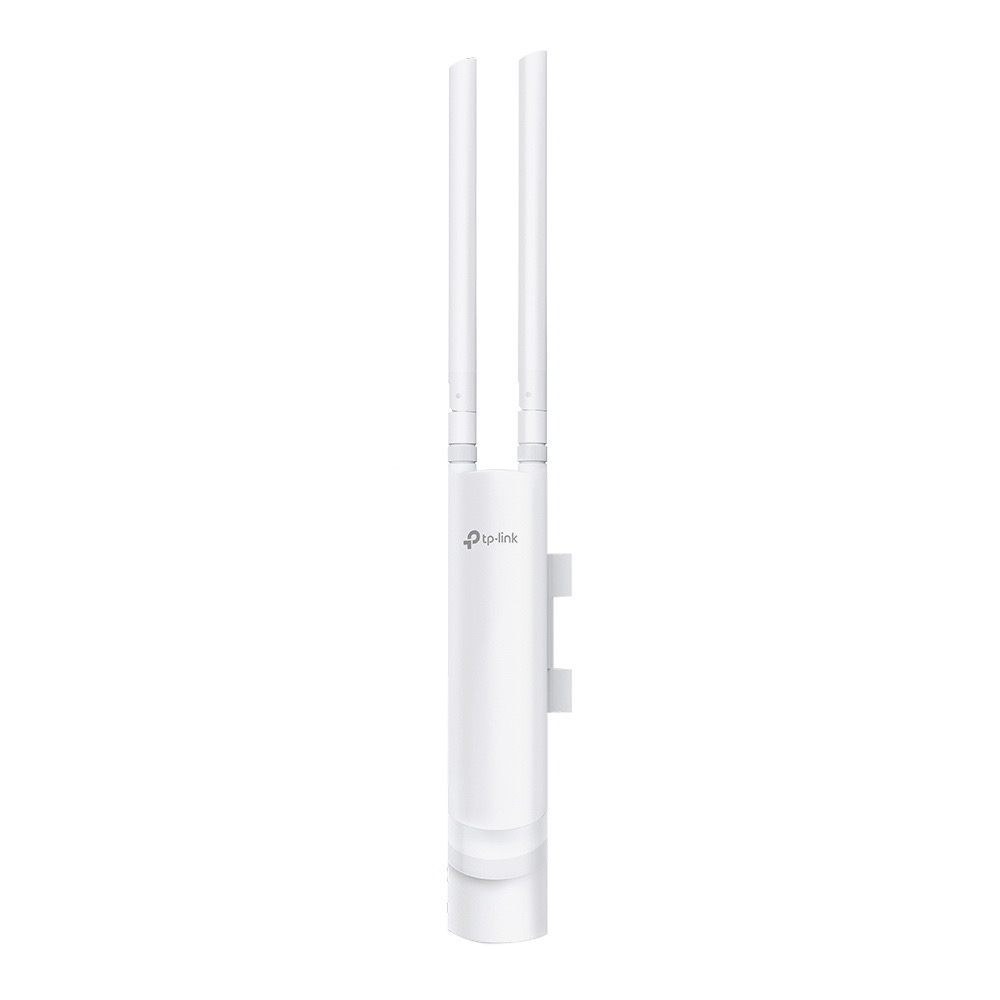

• Durable, weatherproof enclosure for outdoor Wi-Fi applications

• Up to 1200Mbps with 2×2 MIMO technology

• Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient

• Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations

• High transmission power and high gain antennas provide a long-range coverage area

• Cloud centralized management and Omada app for ultra convenience and easy management

• Captive portal provides a convenient method for guest authentication

• Facebook Wi-Fi and SMS authentication help to boost your business

• 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

HARDWARE FEATURES

Interface: 1x Gigabit Ethernet RJ-45 port

Button: Reset

Power Supply: 802.3af PoE and 24 Passive PoE(PoE injector included)

Power Consumption: 10.5W

Dimensions ( W x D x H ): 8.5 × 1.8 × 1.1in.

(215 × 46 × 27 mm)

Antenna: 2.4GHz: 2 × 3dBi

5GHz: 2 × 4dBi

Weatherproof Enclosure: IP65

Mounting: Pole/Wall mount (mounting kit included)

WIRELESS FEATURES

Wireless Client Capacity: 220+

Concurrent Clients: 220+

Wireless Standards: IEEE 802.11a/b/g/n/ac

Frequency: 2.4GHz, 5GHz

Signal Rate: 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)

802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 5.5, 11Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions: Multiple SSIDs（Up to 16 SSIDs, 8 for each band）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

MU-MIMO

Airtime Fairness

Beamforming

Band Steering

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

Transmission Power: • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) MANAGEMENT Omada App: Yes Centralized Management: • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Omada Controller Software: Yes Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email Alerts: Yes Management MAC Access Control: Yes SNMP: v1, v2c System Logging Local/Remote Syslog: Yes SSH: Yes Web-based Management: Yes L3 Management: Yes Multi-site Management: Yes Management VLAN: Yes Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller. Повеќе информации
